| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | TX TELSIG |
| إصدار الشهادات: | SGS, ISO9001 |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | علبة أو صندوق متين |
| وقت التسليم: | 5-8 |
| شروط الدفع: | L/C ، T/T ، PayPal ، إلخ. |
| اسم: | 4900-6000MHz الوحدة النمطية لمكبر الصوت | القوة: | 30 واط |
|---|---|---|---|
| النوع: | مضخم القوة ثنائية الاتجاه | تطبيق: | إشارة معززة |
| موصل: | سما / أنثى | السمة: | 4900-6000 ميغاهرتز |
| الحجم: | 160*165*81mm | وزن الهوائي (كجم): | 5550 جم |
| الجهد: | 28-32 فولت |

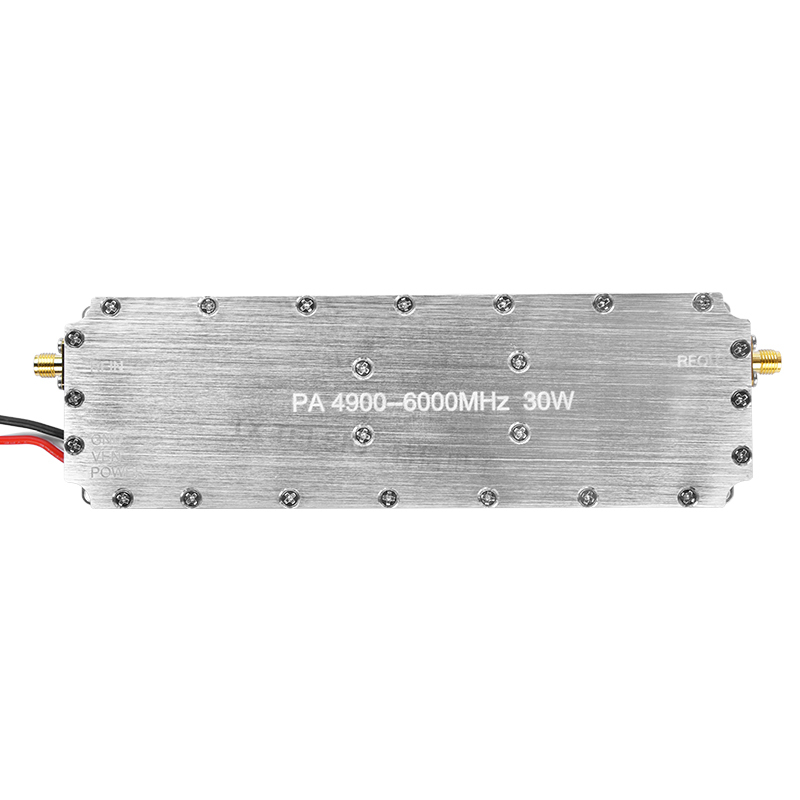

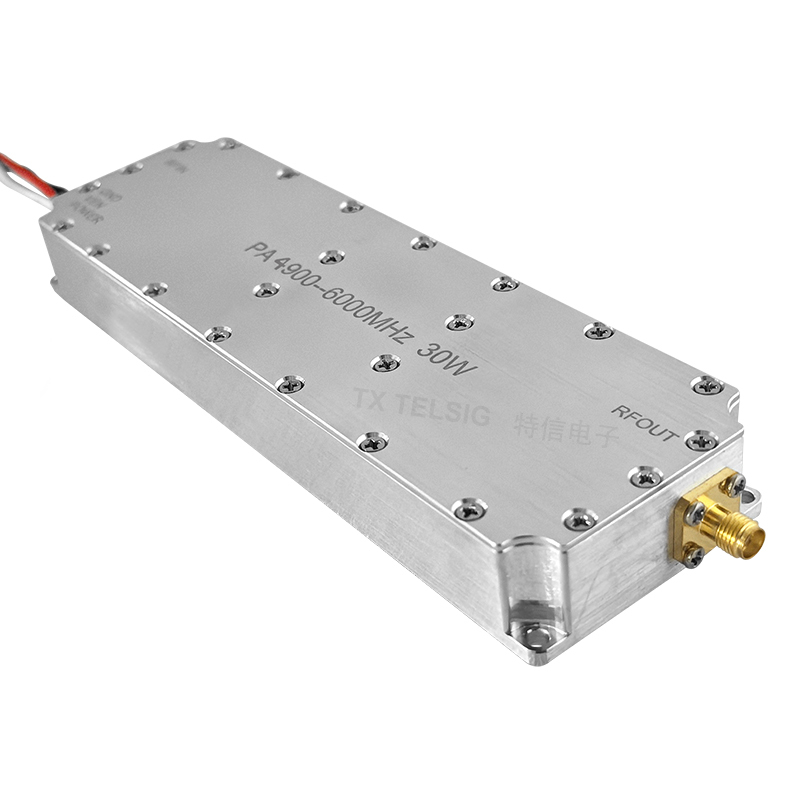

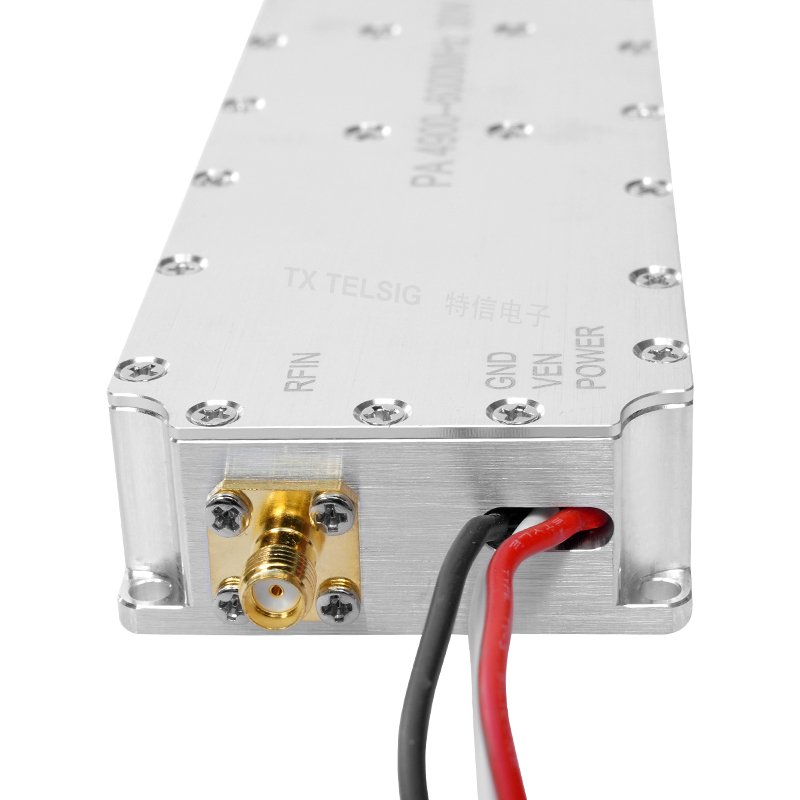

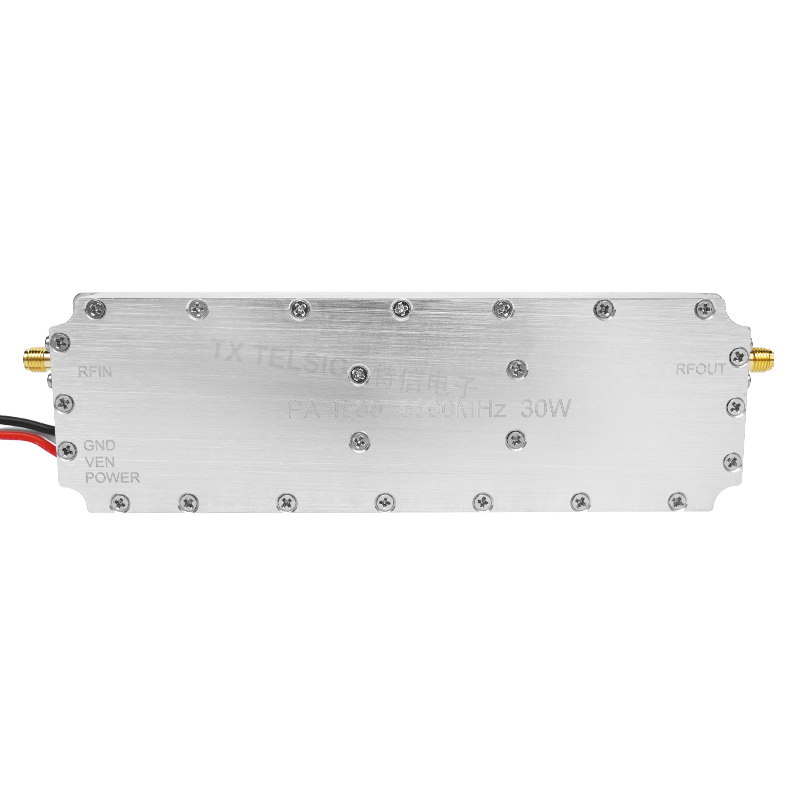

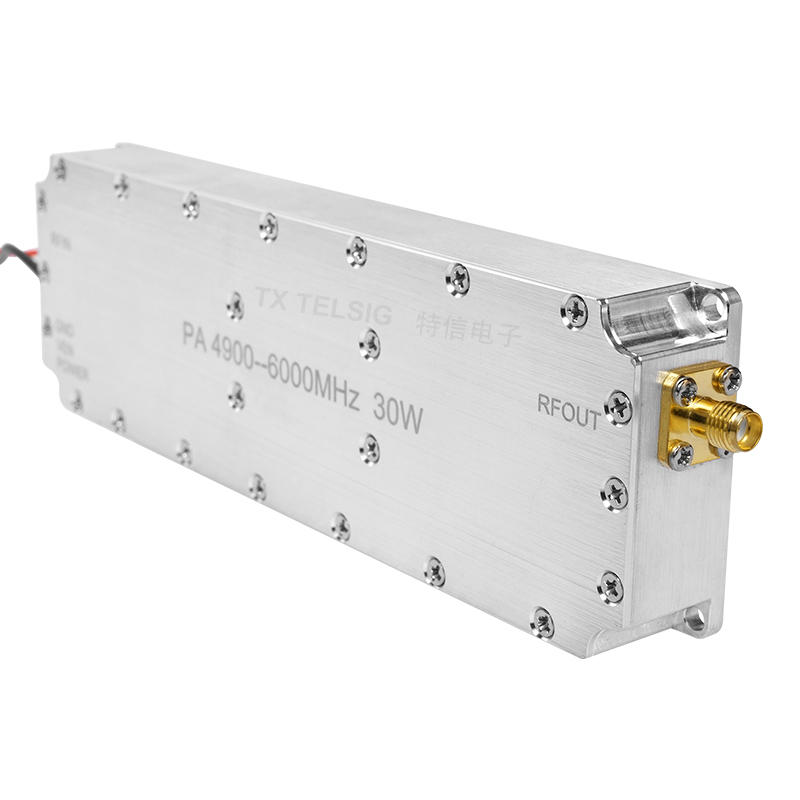

4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
This is bidirectional 30W 4900-6000mhz PA wide band power amplifier module ,the module has wide bandwidth, good flatness, sufficient wattage features.It usually use in communication field ,radar and drone FPV defense . The frequency band is not fixed, and customization is supported.
Features:
| No. | Item | Data | Unit |
| 1 | Frequency | 4900-6000 | MHz |
| 2 | Test voltage | 28-32 | V |
| 3 | Current | 3.5 | A |
| 4 | Output | 30 | W |
| 5 | Gain | 43 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Input stability | 0-10 | dB |
| 8 | Connector | SMA/ Female | |
| 9 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 10 | Power supply wire | Red+Black+Enable wire | |
| 11 | Enable Control | High ON Low Off | |
| 12 | Out shell Size | 160*50*20 | mm |
| 13 | Mount hole | 154*44 | mm |
| 14 | Weight | 300 | g |
| 15 | Work Temperature | -40~+65 | ℃ |
| 16 | Out shell material | Aluminum | |
| 17 | Vibration need | Car load OK | |
Working and storage environment requirements
Application
Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
FAQ
1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed an order ?
A.Let us know your requirement and product application through inquiry on Alibaba website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
